Models & capacities

Four systems. One controlled process.

Select the MAOF system that fits your mortality pattern, operating scale, electrical supply and site layout. Final sizing should be based on actual daily and peak loads—not farm size alone.

Product range

Capacity that follows the operation.

The 500L, 1500L and 2250L models combine sustained heat, continuous mixing and automated weight monitoring. The economical 250L is designed for smaller farms and uses timer-based operation without the integrated weighing system.

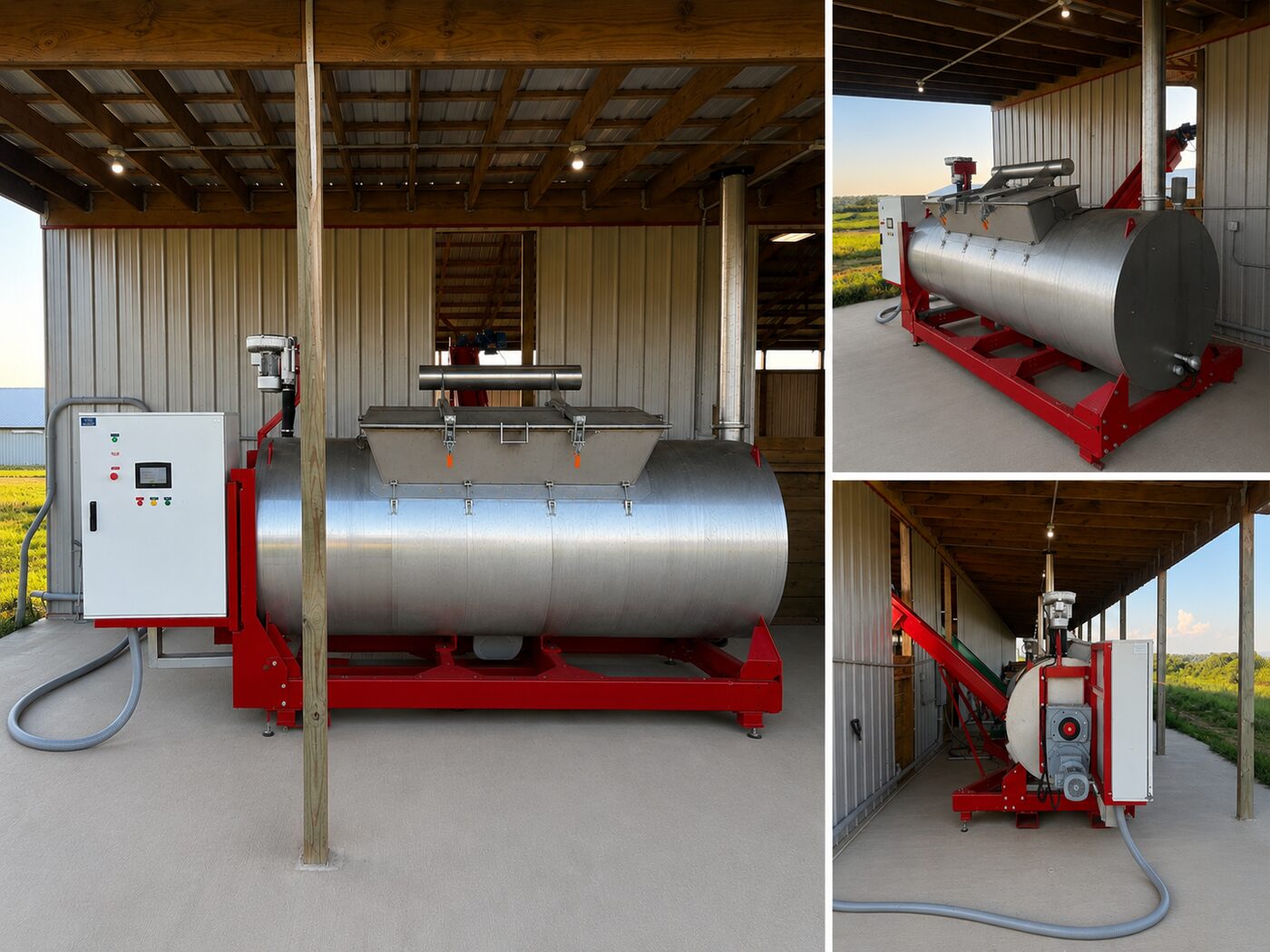

MAOF 2250L poultry mortality dehydrator at a commercial installation — MAOF 2250L · Commercial installation

Sizing principle

Match capacity to your operation.

A suitable model must accommodate routine daily mortality while allowing for higher-load days, flock changes and the minimum quantity needed for efficient operation.

Daily averageThe normal kilograms collected each day determine the efficient working range and loading frequency.

Peak mortalityAllow capacity for heavier days, late-cycle mortality and unexpected short-term increases.

Available powerMAOF can accommodate most site requirements, including single- or three-phase supplies and voltages up to 480 V.

Site workflowCollection routes and loading routines help determine whether one larger unit or several smaller units fit best.

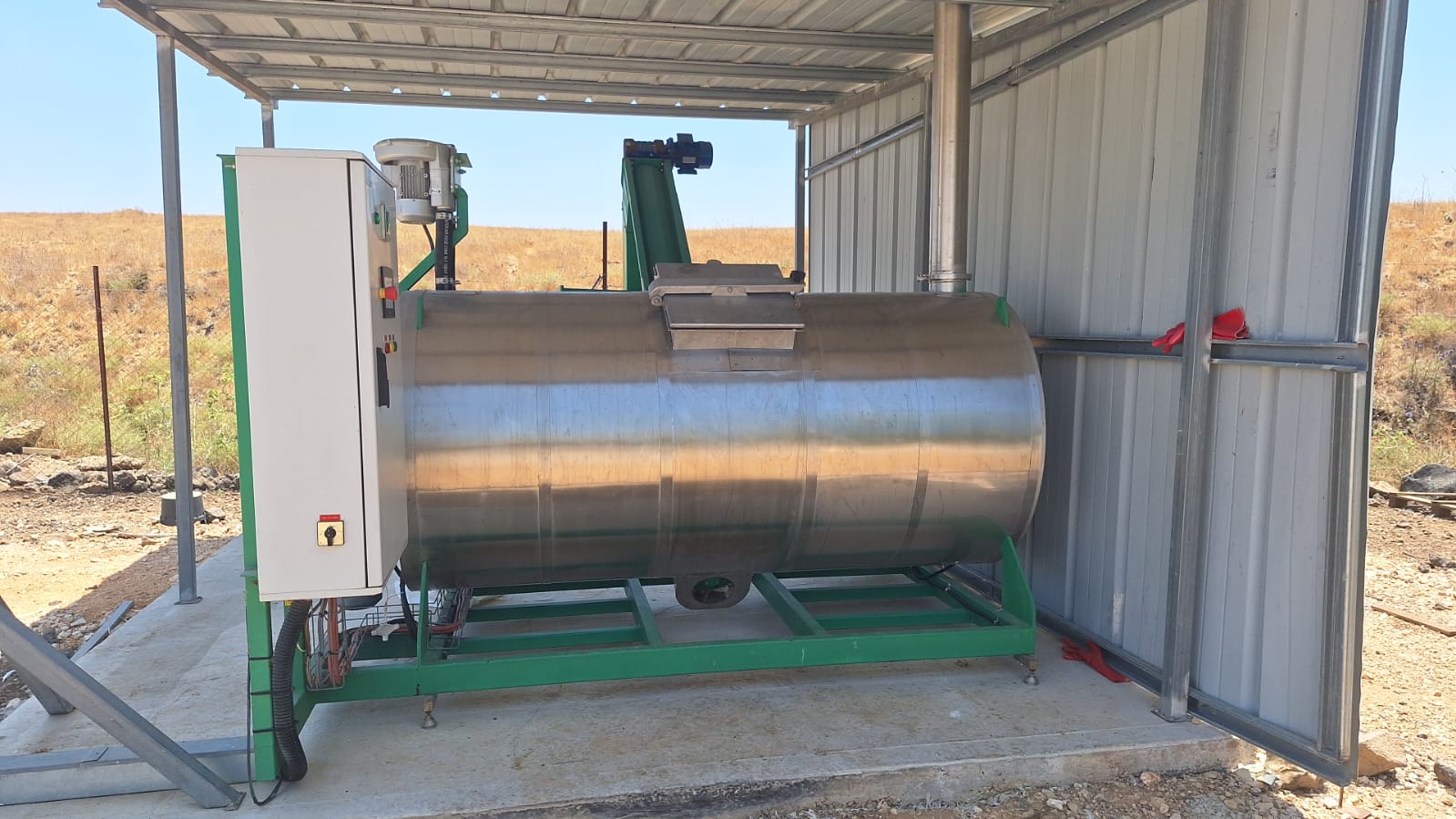

MAOF 1500L dehydrator installed beneath a protective shelter — **1500L in the field**Operating installation under a protective shelter

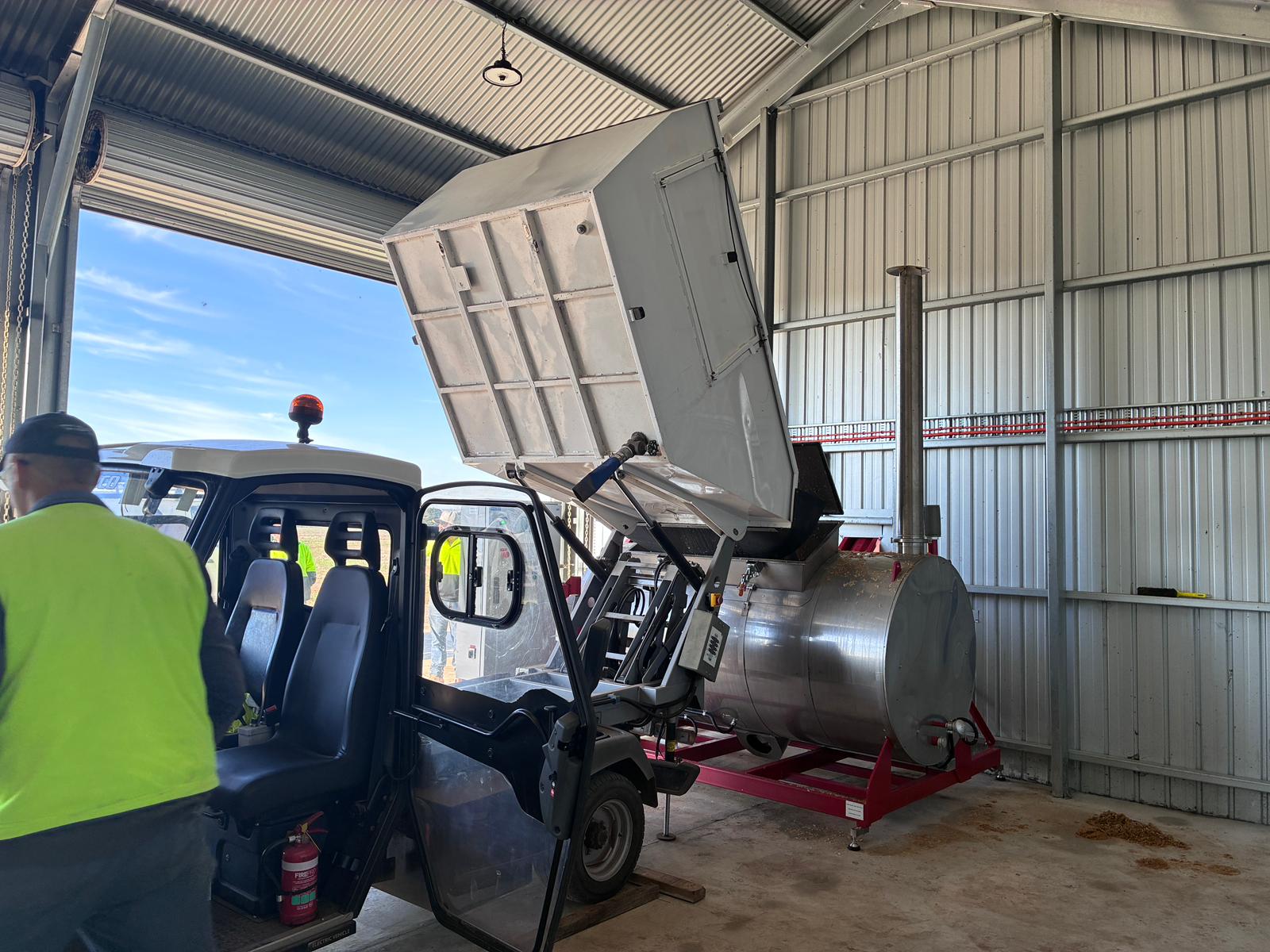

Poultry mortality being loaded into a MAOF 1500L dehydrator — **Routine loading**Mechanized loading at an operating poultry site

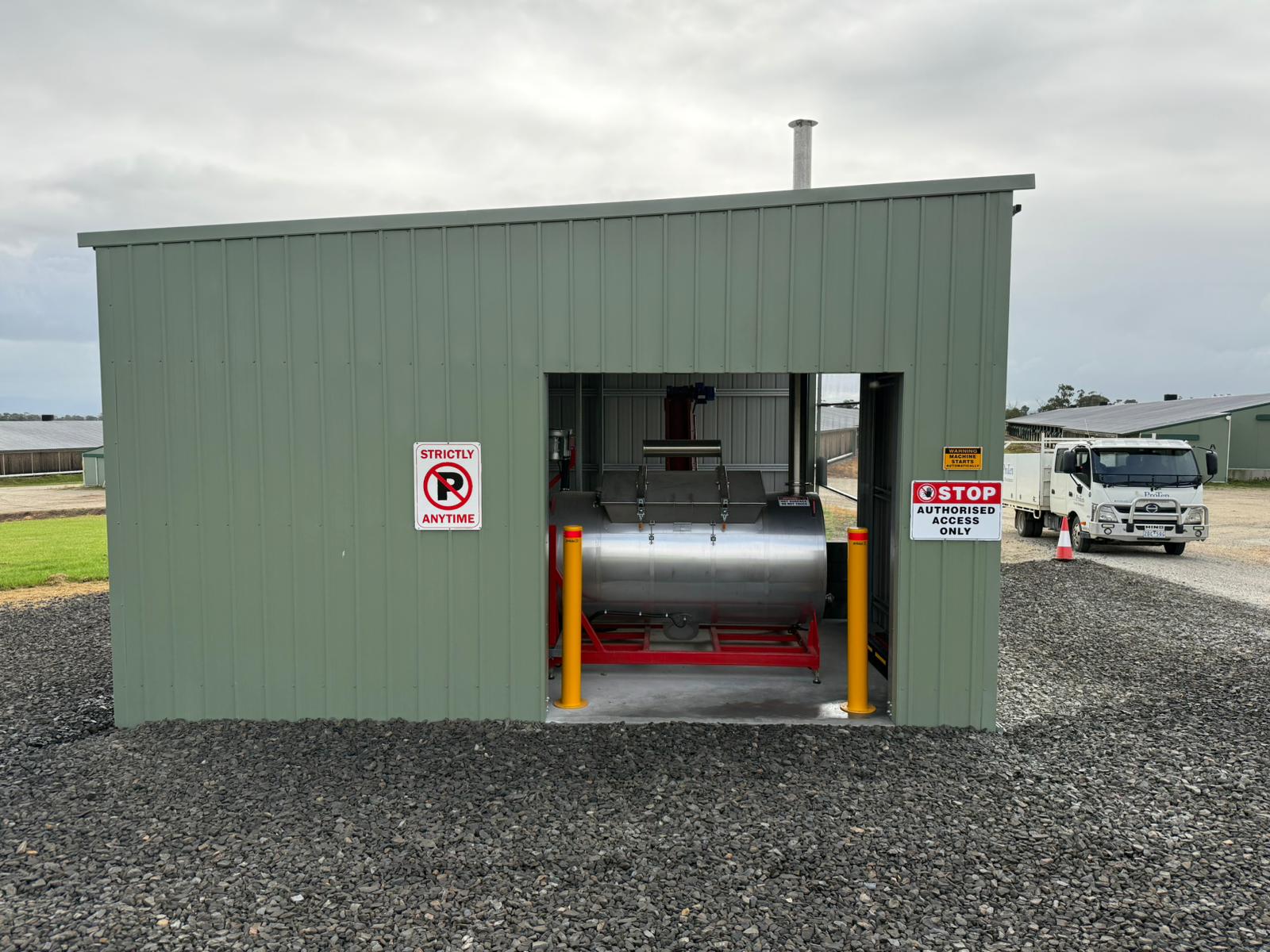

MAOF poultry mortality dehydrator installed in a dedicated field structure — **Dedicated installation**On-site placement close to the poultry operation

2250LHigh capacity

Load range300–1,350 kg

Electrical supply400 V · 3 phase · 100 A recommended

Best suited to

High-volume farms, complexes and central on-site operating points

Configuration note

Approximately 45 kg/hour moisture-removal capacity under typical conditions.

1500LCommercial

Load range200–900 kg

Electrical supply400 V · 3 phase · 63 A

Best suited to

Commercial poultry farms and multi-house operations

Configuration note

Approximately 30 kg/hour moisture-removal capacity under typical conditions.

500LCommercial

Load range75–250 kg

Electrical supply400 V · 3 phase · 32 A

Best suited to

Smaller farms, hatcheries and lower daily mortality volumes

Configuration note

6.5 kW heating system with automated control and continuous mixing.

250LCompact

Load range50–150 kg

Electrical supplyConfiguration on request

Best suited to

Smaller farms and layer operations with modest daily mortality volumes

Configuration note

Economical timer-controlled model without an integrated weighing or load-cell system.

Important sizing note

Capacities and cycle performance depend on mortality type, moisture and fat content, loading pattern, ambient conditions and target final weight. The table shows standard 400 V configurations; single-phase models are available for the USA, adjustments can be made for supplies up to 480 V, and MAOF systems are also operating with solar power-based solutions. The client’s exact available power is confirmed in writing before the electrical configuration is finalized.

Select a model

Send us the operating data. We’ll help size the system.

Share the bird type, number of birds, mortality rate, grow-cycle length, electrical supply and preferred loading routine.

Open the Planning Calculator Request model guidance
